You receive a scaffold plan that says it comes from TektonAI. It reaches you from a supplier, a subcontractor or a client. Before relying on it, check it. The check takes a minute and needs no TektonAI account.

This tutorial shows where to look, what the check proves and what it does not.

Step 1: find the reference and the check code

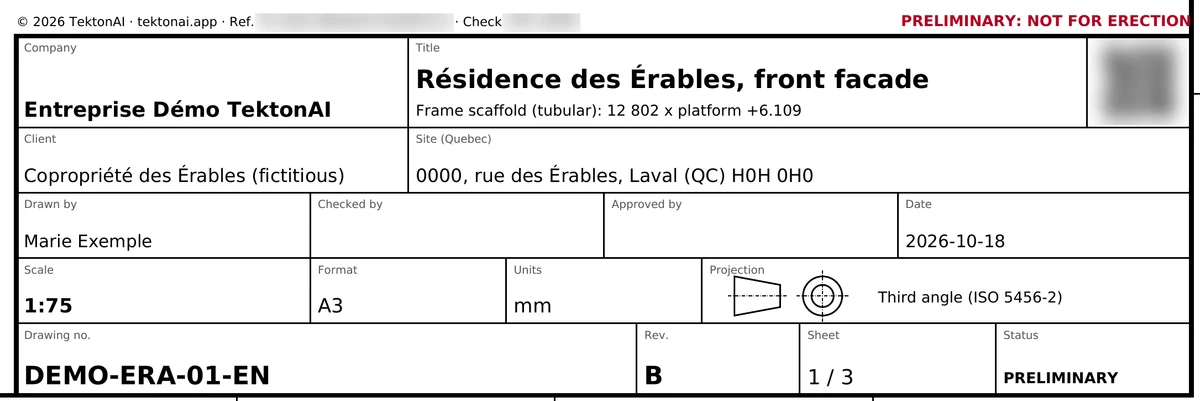

On every sheet of a plan produced by Scaffold, a provenance line is printed above the title block:

“© 2026 TektonAI · tektonai.app · Ref. TK-2026-… · Check XXXX-XXXX” (on a plan in French: “Réf. … · Contrôle …”)

• The reference (Réf. TK-…) identifies the delivery: the plan, its revision and all its files.
• The check code comes from a signature only TektonAI can produce. It ties the reference to a summary of the plan: drawing number, revision, client, project, number of pieces, total weight and top platform.
• The QR code, in the title block, leads to the verification page for that reference.

The same line also appears:

• at the foot of the calculation note’s pages, with the QR code on the first page;
• at the foot of Inventory’s labels and rental slips.

Step 2: open the verification page

Scan the QR code with your phone, or enter the address yourself:

• for a plan, a calculation note or a parts catalogue: https://mcp.tektonai.app/scaffold/verifier/<reference>
• for labels or a rental slip: https://mcp.tektonai.app/inventory/verifier/<reference>

Before opening a QR code’s link, look at the address. It must start with https://mcp.tektonai.app/. A QR code that leads elsewhere is not ours. If in doubt, enter the address yourself with the printed reference.

Older documents may have a QR code to another address:

• /echafaudcad/verifier/… or /echafaud/verifier/… for a plan;
• /remise/verifier/… for an Inventory document.

These addresses lead to the same page. They are not fakes. What counts is the mcp.tektonai.app domain.

The page accepts 30 checks per 10-minute period from the same connection. Beyond that, it answers that there have been too many checks and to try again in a few minutes. That message does not mean the document is fake.

Step 3: compare the page with the paper

The page says whether the reference is authentic or unknown. For an authentic reference, it shows:

• the issuer;
• the date;
• the company that produced the document;
• the check code;
• the signed content, with the drawing number, the revision, the client and the project.

Compare each point with the plan in your hands:

• Is the check code shown the one printed on the sheet?
• Are the drawing number and the revision the same?
• Are the company that produced the plan, the client and the project the ones you were told?
• Do the number of pieces, the weight and the top platform match what the plan shows?
• Does the date match what you were told?

Do you have the file itself (PDF, DXF, Excel)? Drop it on the page. The page compares its fingerprint with the delivered files, then says whether the file is identical to the original or modified. The file is not kept, and the page never shows the document.

Signs of a fake

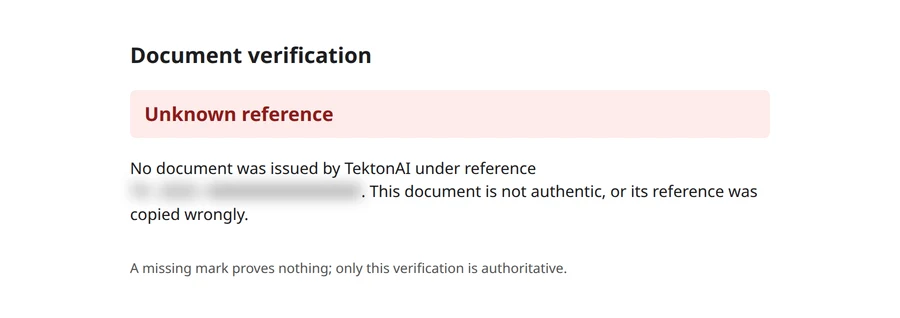

• The page answers “unknown reference” for a document less than 10 years old. Our data is kept for up to 10 years, so an older document also answers “unknown reference”.
• The check code, drawing number, company, client or project differ from the paper.
• The page reports the file you dropped as “modified”.
• The revision shown is older than the one announced on the plan. An old revision is still authentic, since each revision has its own reference. Compare its index with the latest plan received from the company, and ask the company for the current plan.
• The QR code leads to an address other than mcp.tektonai.app.
• The plan carries “PRÉLIMINAIRE : NE PAS UTILISER POUR LE MONTAGE” (preliminary, not for erection), but it is presented to you as approved for erection. An approved plan carries the “APPROUVÉ POUR MONTAGE” status, with the names of the person who checked it and the person who approved it.

A missing mark does not prove that the document is fake, nor that it is authentic: a screenshot or a photocopy can remove it. Only the check counts.

What the check proves, and what it does not

The check proves that TektonAI issued this reference, for this company, on this date, with this content. If you drop the file, it also proves that the file is identical, byte for byte, to the one delivered.

It does not prove:

• that a printed document was not altered outside the fields you compared. For a printed document, compare the fields or ask for the file;
• that the person handing you the plan works for the issuing company;
• that the plan suits your site. Check that the project and dimensions match;
• that the plan is correct. An authentic plan is still a preliminary plan. A competent person must check it before erection, and an engineer must seal it when the province’s regulation requires it.

If in doubt

1. Do not erect the scaffold.
2. Contact the issuing company, the one the page shows. Use its usual contact details, not those that came with the doubtful document.
3. Write to us at info@tektonai.app with the reference and a photo of the document.

To go further, see Security and privacy and Revise a plan and track its versions.
